型號Model
|

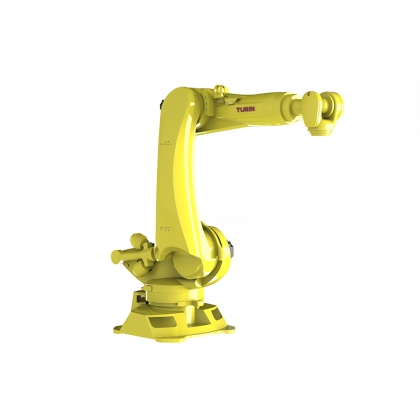

TKB6700
|
|
|
手腕負載Payload
|
210KG
|
|
| 最大工作半徑Max Working Radius | 2700mm | |
| 自由度DOF | 6軸 | |
| 本體重量Body Weight | 1131KG | |
| 減速機品牌Reducer Brand | 上海圖靈定制 | |
| 電機品牌Motor Brand | 意大利RRR | |
| 驅動品牌Drive Brand | 意大利RRR | |
| 額定功率Rated Power | 8.5kw | |
| 關節速度Max Speed | J1 | 123°/s |
| J2 | 115°/s | |
| J3 | 112°/s | |
| J4 | 179°/s | |
| J5 | 172°/s | |
| J6 | 219°/s | |
| 關節范圍Max Operation Area | J1 | ±185° |
| J2 | -50°~85° | |
| J3 | -155°~120° | |
| J4 | ±350° | |
| J5 | ±125° | |
| J6 | +350° | |
| 防護等級protective specification | J5J6 | IP67 |
| 其他 | IP54 | |
| 重復定位精度Position Repeat Accuracy | ±0.1mm | |
| 控制柜controller | TRC3-C06 | |
| 工作溫度Working Temperature | 0~45℃ | |
