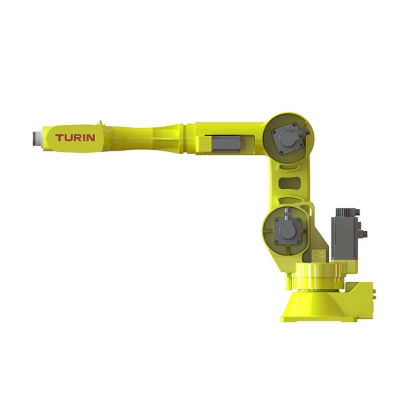

型號Model
|
TKB6300
|
|
| 手腕負載Payload | 25kg | |
| 最大工作半徑Max Working Radius | 1700mm | |
| 自由度DOF | 6軸 | |
| 本體重量Body Weight | 280kg | |
| 減速機品牌Reducer Brand | 進口 | |
| 電機品牌Motor Brand | 意大利RRRobotica | |
| 驅動品牌Drive Brand | 意大利RRRobotica | |
| 額定功率Rated Power | 4.7kw | |
| 關節速度Max Speed | J1 | 187°/s |
| J2 | 148°/s | |
| J3 | 169°/s | |
| J4 | 234°/s | |
| J5 | 225°/s | |
| J6 | 360°/s | |
| 關節范圍Max Operation Area | J1 | ±160° |
| J2 | 150°~-75° | |
| J3 | 60°~-200° | |
| J4 | ±180° | |
| J5 | ±120° | |
| J6 | ±360° | |
| 防護等級protective specification | 54 | |
| 重復定位精度Position Repeat Accuracy | ±0.08mm | |
| 控制柜controller | TRC5-B06 | |
| 工作溫度Working Temperature | 0~45℃ | |
