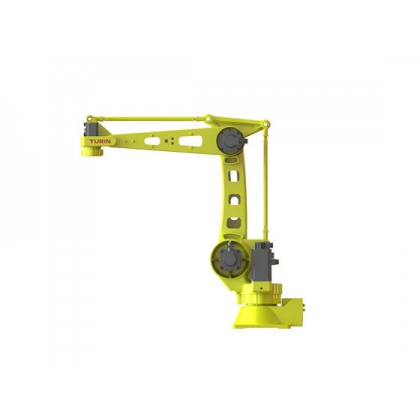

型號Model
|
TKB460
|
|
| 手腕負載Payload | 30kg | |
| 最大工作半徑Max Working Radius | 1840mm | |
| 自由度DOF | 4軸 | |
| 本體重量Body Weight | 240Kg | |
| 減速機品牌Reducer Brand | 進口＋定制 | |
| 電機品牌Motor Brand | RRRobitica | |
| 驅動品牌Drive Brand | RRRobitica | |
| 額定功率Rated Power | 4.2KW | |
| 關節速度Max Speed | J1 | 187°/s |
| J2 | 172°/s | |
| J3 | 172°/s | |
| J4 | 360°/s | |
| 關節范圍Max Operation Area | J1 | ±175° |
| J2 | 85°~-35° | |
| J3 | 70°~-90° | |
| J4 | ±360° | |
| 防護等級protective specification | IP54 | |
| 重復定位精度Position Repeat Accuracy | ±0.08mm | |
| 控制柜controller | TRC5-B06 | |
| 工作溫度Working Temperature | 0~45℃ | |
