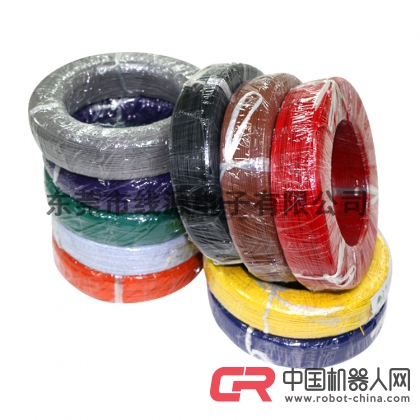

■產品說明： ■ PRODUCT DE
|
●額定溫度：80℃ ●額定電壓：30V ●參考標準：UL758,UL1581 ●導體使用單支或絞合50AWG以上鍍錫或裸銅 ●PVC或SRPVC絕緣，符合ROHS環保標準 ●PVC護套，符合ROHS環保標準(可選) ●鍍錫或裸銅纏繞屏蔽(可選) ●通過UL VW-1及JQA F-Mark阻燃測試 ●使用標準絕緣厚度、易裁線、易剝皮 ●用于一般電子、電器設備內部連接線 |
●Rated temperature：80℃ ●Rated voltage：30V ●Reference standard：UL758,UL1581 ●Solid or stranded ,tinned or bare copper conductor 50AWG min. ●PVC SR-PVC insulation, comply with ROHS environmental standard ●PVC jacket , passes ROHS environmental standard（optional） ●Tinned or bare copper wire spiral shield（optional） ●Passes UL VW-1 and JQA F-Mark flame test ●Uniform insulation thickness to ensure easy stripping and cutting ●For general purpose internal wiring of appliance |
■產品結構 CABLE CONSTRUCTION
|
導體 |
絕緣 |
纏繞 |
護套 |
最大導體電阻 (Ω/km,20℃,DC) |
||||
|
規格 AWG |
構造 (No./mm) |
外徑 (mm) |
絕緣厚度 (mm) |
外徑 (mm) |
構造 (No./mm) |
護套厚度 (mm) |
外徑 (mm) |
|
|
36 |
7/0.05 |
0.15 |
0.15 |
0.45 |
- |
- |
- |
1549 |
|
34 |
7/0.063 |
0.19 |
0.15 |
0.50 |
- |
- |
- |
966 |
|
32 |
7/0.08 |
0.24 |
0.18 |
0.60 |
- |
- |
- |
596 |
|
30 |
1/0.254 |
0.25 |
0.20 |
0.65 |
- |
- |
- |
361 |
|
7/0.10 |
0.30 |
0.20 |
0.70 |
- |
- |
- |
381 |
|
|
28 |
1/0.32 |
0.32 |
0.19 |
0.70 |
- |
- |
- |
227 |
|
7/0.127 |
0.38 |
0.26 |
0.90 |
- |
- |
- |
239 |
|
|
7/0.127OS-1 |
0.38 |
0.26 |
0.90 |
- |
- |
- |
239 |
|
|
26 |
1/0.404 |
0.40 |
0.25 |
0.90 |
- |
- |
- |
143 |
|
7/0.16 |
0.48 |
0.26 |
1.00 |
- |
- |
- |
150 |
|
|
7/0.16 OS-1 |
0.48 |
0.26 |
1.00 |
- |
- |
- |
150 |
|
|
24 |
1/0.511 |
0.51 |
0.24 |
1.00 |
- |
- |
- |
89.3 |
|
11/0.16 |
0.61 |
0.25 |
1.10 |
- |
- |
- |
94.2 |
|
|
7/0.203OS-1 |
0.61 |
0.25 |
1.10 |
- |
- |
- |
94.2 |
|
|
22 |
1/0.643 |
0.64 |
0.25 |
1.15 |
- |
- |
- |
56.4 |
|
17/0.16 |
0.76 |
0.27 |
1.30 |
- |
- |
- |
59.4 |
|
|
7/0.254OS-1 |
0.76 |
0.27 |
1.30 |
- |
- |
- |
59.4 |
|
|
30 |
7/0.10 |
0.31 |
0.20 |
0.70 |
21/0.10 |
0.25 |
1.40 |
381 |
|
28 |
7/0.127 |
0.38 |
0.19 |
0.75 |
24/0.10 |
0.25 |
1.45 |
239 |
|
26 |
7/0.16 |
0.48 |
0.26 |
1.00 |
29/0.10 |
0.35 |
1.90 |
150 |
|
24 |
11/0.16 |
0.61 |
0.25 |
1.10 |
32/0.10 |
0.35 |
2.00 |
94.2 |
|
22 |
17/0.16 |
0.76 |
0.27 |
1.30 |
37/0.10 |
0.35 |
2.20 |
59.4 |
|
20 |
21/0.178 |
0.94 |
0.28 |
1.50 |
42/0.10 |
0.35 |
2.40 |
36.7 |
|
18 |
34/0.178 |
1.20 |
0.30 |
1.80 |
50/0.10 |
0.35 |
2.70 |
23.2 |
|
16 |
26/0.254 |
1.49 |
0.31 |
2.10 |
49/0.12 |
0.38 |
3.10 |
14.6 |
備注.OS-1*： 先鍍后絞再鍍銅線.
Note. OS-1*:Over-coated tinned stranded copper
