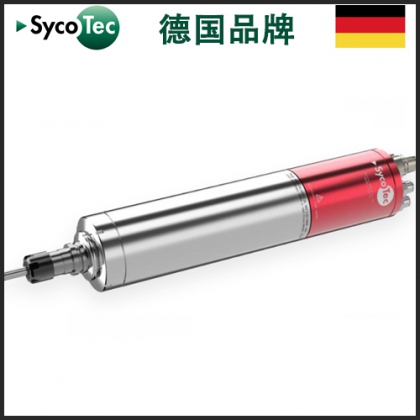

（鉆, 銑, 磨, 雕刻）機床機器人電主軸

Applications

Drilling, Milling, Grinding, Engraving

外殼夾裝尺寸

60 mm

Clamping diameter

60 mm

馬達類型

3相異步高速電機

Motor system

3 Phase asynchronous motor

轉速范

3,000 – 50,000 min-1

Speed range

3,000 - 50,000 rpm

額定電壓

220 V

Voltage

220 V

電流

最大 14 A

Current

max. 14 A

扭矩

最大 215 Ncm

Torque

max. 215 Ncm

頻率

50 - 833 Hz

Frequency

50 - 833 Hz

功率

最大 2,000 W

Output power

max. 2,000 W

重量

3.5 kg

Weight

3.5 kg

軸承

3 x 鋼球軸承, 油脂潤滑

Bearing system

3 x Steel, lifetime lubrication

防護等級

IP 54/57

Protection category

IP 54/57

電機保護

PTC - 130 °C

Motor protection

PTC - 130°C

安裝位置

Working position

負載方向

軸向 + 徑向

Load direction

axial + radial

錐面跳動

通常1 µm

Run-out (taper)

[ 1 µm

刀具夾持范圍

Ø 0.5 – 7.0 mm (ER 11)

Chuck clamping range

Ø 0.5 - 7.0 mm (ER 11)

換刀方式

1 開口扳手 (SW 13)

Tool change

1 open-end wrench (13 mm)

冷卻系統

外夾具冷卻

Cooling system

Cooling via clamping bracket

防水防塵措施

密封氣0.8–1.0 bar(管徑Ø 內/外 4/6 mm)

Protected against dirt
and cooling lubricant

Sealing air 0.8 - 1.0 bar
(hose Ø outer 4 mm)

外殼材料

不銹鋼

Housing material

Stainless steel

推薦變頻器

e@syDrive® TV 4538,

EMERSON SKCD200220

Inverter recommendation

e@syDrive® TV 4538,

EMERSON SKCD200220

保留修改權

Subject to change without notice
