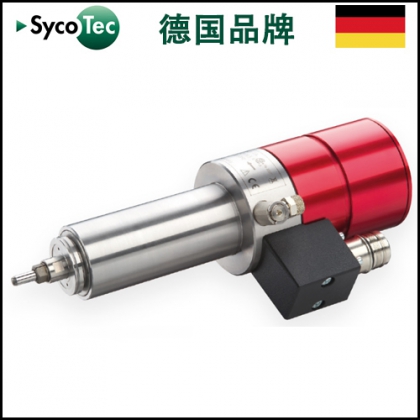

小型電主軸微型電主軸 德國原裝進口精度1μm
| 應用 |
鉆, 銑, 磨, 雕刻機床 |
Applications |
Drilling, Milling, Grinding, Engraving |
|
外殼夾裝尺寸 |
45 mm |
Clamping diameter |
45 mm |
|
馬達類型 |
無刷同步高速電機 |
Motor system |
Brushless DC motor (BLDC) |
|
轉速范圍 |
5,000 – 50,000 / 60,000* min-1 |
Speed range |
5,000 - 50,000 / 60,000* rpm |
|
額定電壓 |
45 V |
Voltage |
45 V |
|
電流 |
最大 16 A |
Current |
max. 16 A |
|
扭矩t |
最大 17 Ncm |
Torque |
max. 17 Ncm |
|
頻率 |
83 – 1,000 Hz |
Frequency |
83 - 1,000 Hz |
|
功率 |
最大 1,050 W |
Output power |
max. 1,050 W |
|
重量 |
3.2 kg |
Weight |
3.2 kg |
|
軸承 |
3 x 陶瓷軸承, 油脂潤滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
|
保護等級 |
IP 54 |
Protection category |
IP 54 |
|
電機保護 |
PTC - 100 °C |
Motor protection |
PTC - 100°C |
|
安裝位置 |
Working position |
||
|
負載方向 |
徑向 + 軸向 |
Load direction |
axial + radial |
|
錐面跳動 |
通常 1 µm |
Run-out (taper) |
typ. 1 µm |
|
刀具夾持范圍 |
Ø 1.0 – 6.35 mm (incl. 1/8 + 1/4") |
Chuck clamping range |
Ø 1.0 - 6.35 mm (incl. 1/8 + 1/4") |
|
換刀方式 |
氣動 7 - 8 bar (管徑Ø 內/外 4/6 mm) |
Tool change |
pneumatical 7 - 8 bar |
|
冷卻系統 |
外夾具冷卻 |
Cooling system |
Cooling via clamping bracket |
|
防水防塵措施 |
壓縮氣0.5 -0.8 bar (管徑Ø內/外 4/6 mm) |
Protected against dirt |
Sealing air 0.5 - 0.8 bar |
|
外殼材料 |
不銹鋼 |
Housing material |
Stainless steel |
|
推薦變頻器 |
e@syDrive® 4426, TV 4506** |
Inverter recommendation |
e@syDrive® 4426, TV 4506** |
|
*短時間運行 **輸出功率有所降低 |
保留修改權 |
*short term **reduced output power |
Subject to change without notice |
|
|
|
|
|
|
|
|
