| 應用 |

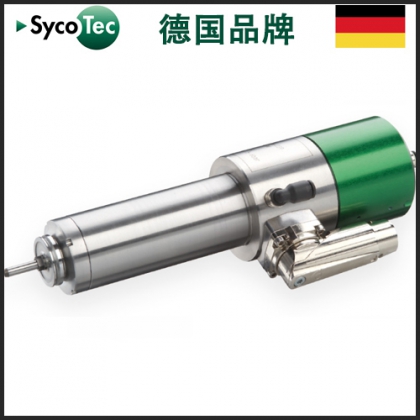

PCB分板機電主軸 |
Applications |
PCB routing |
|
外殼夾裝尺寸 |
33 mm |
Clamping diameter |
33 mm |
|
馬達類型 |
3相異步高速電機 |
Motor system |
3 Phase asynchronous motor |
|
轉速范 |
6.000 – 100.000 min-1 |
Speed range |
6,000 – 100,000 rpm |
|
額定電壓 |
max. 60 V |
Voltage |
max. 60 V |
|
電流 |
max. 8 A |
Current |
max. 8 A |
|
扭矩 |
max. 8,4 Ncm |
Torque |
max. 8.4 Ncm |
|
頻率 |
100 - 1.666 Hz |
Frequency |
100 - 1,666 Hz |
|
功率 |
max. 500 W |
Output power |
max. 500 W |
|
重量 |
1,0 kg |
Weight |
1.0 kg |
|
軸承 |
3 x陶瓷軸承, 油脂潤滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
|
防護等級 |
IP 55/57 (加密封氣) |
Protection category |
IP 55/57 (with sealing air + optional
accessory: sealing cap 2001 2618)
|
|
電機保護 |
KTY |
Motor protection |
KTY |
|
安裝位置 |
|
Working position |
|
|
負載方向 |
徑向 + 軸向 |
Load direction |
axial + radial |
|
錐面跳動 |
≤ 1 μm |
Run-out (taper) |
≤ 1 μm |
|
刀具夾持范圍 |
至 Ø 4.0 mm |
Chuck clamping range |
up to Ø 4.0 mm |
|
換刀方式 |
壓縮氣 5 - 6 bar (管內經 Ø 4 mm) |
Tool change |
pneumatic 5 - 6 bar (hose Ø 4 mm) |
|
冷卻系統 |
外夾具冷卻 |
Cooling system |
Cooling via clamping bracket |
| 防水防塵措施 | 密封氣 27 Nl/min (管內經 Ø 4 mm) |
Protected against dirt |
Sealing air 27 l/min@STP
(hose outer Ø 4 mm)
|
|
外殼材料 |
不銹鋼 |
Housing material |
Stainless steel |
|
推薦變頻器 |
e@syDrive® 4310(IP00)*, 4320(IP00)*,
4425*, 4426,TV4503*,TV4504,TV4506
|
Inverter recommendation |
e@syDrive® 4310(IP00)*, 4320(IP00)*,
4425*, 4426,TV4503*,TV4504,TV4506
|
| 特性 | 導靜電 | Highlights | Electrostatic discharge |
|
|
保留修改權 |
Subject to change without notice |
|
|
|
|
|
|
|
|
