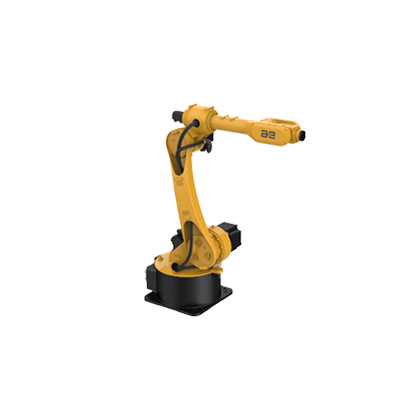

| 型號/Type | AIR25-1700 | |
| 軸數(shù)/Axes | 6 | |
| 負載 / load | 25kg | |
| 機器人本體/Manipulator | 重量 / Weight | 294kg |
| 最大運動范圍 / Reach | 1702mm | |
| 定位精度/Positioning accuracy | 位置重復定位精度 / Position repeatability | ±0.03mm |
| ———— | ———— | |
| 運動范圍/ Working range |
軸1 / Axis 1 rotation | -170°/+170° |
| 軸2 / Axis 2 arm | -95°/+155° | |
| 軸3 / Axis 3 arm | -95°/+170° | |
| 軸4 / Axis 4 wrist | -185°/+185° | |
| 軸5 / Axis 5 Bend | -135°/+135° | |
| 軸6 / Axis 6 Turn | -400°/+400° | |
| 運動速度/Rotation rate | 軸1 / Axis 1 rotation | 220°/s |
| 軸2 / Axis 2 arm | 220°/s | |
| 軸3 / Axis 3 arm | 170°/s | |
| 軸4 / Axis 4 wrist | 375°/s | |
| 軸5 / Axis 5 Bend | 465°/s | |
| 軸6 / Axis 6 Turn | 755°/s | |
| 適用控制柜/Controllers | inCube22 | |
|
|
|
|
|
|
|
|
