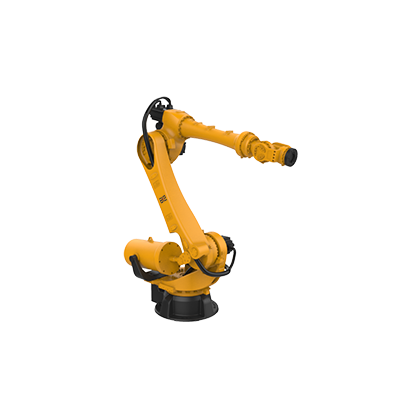

| 型號/Type | AIR165-2750 | |
| 軸數(shù)/Axes | 6 | |
| 負載 / load | 165kg | |
| 機器人本體/Manipulator | 重量 / Weight | 1200kg |
| 最大運動范圍 / Reach | 2750mm | |
| 定位精度/Positioning accuracy | 位置重復定位精度 / Position repeatability | ±0.1mm |
| —— | —— | |
| 運動范圍/ Working range |
軸1 / Axis 1 rotation | -170°/+170° |
| 軸2 / Axis 2 arm | -60°/+85° | |
| 軸3 / Axis 3 arm | -120°/+155° | |
| 軸4 / Axis 4 wrist | -360°/+360° | |
| 軸5 / Axis 5 Bend | -125°/+125° | |
| 軸6 / Axis 6 Turn | -360°/+360° | |
| 運動速度/ Rotation rate |
軸1 / Axis 1 rotation | 125°/s |
| 軸2 / Axis 2 arm | 113°/s | |
| 軸3 / Axis 3 arm | 125°/s | |
| 軸4 / Axis 4 wrist | 180°/s | |
| 軸5 / Axis 5 Bend | 175°/s | |
| 軸6 / Axis 6 Turn | 280°/s | |
| 適用控制柜/Controllers | ARC4-165 | |
|
|
|
|
|
|
|
|
