椿本拖鏈 TSUBAKI電纜拖鏈 佳寶來拖鏈 坦克鏈

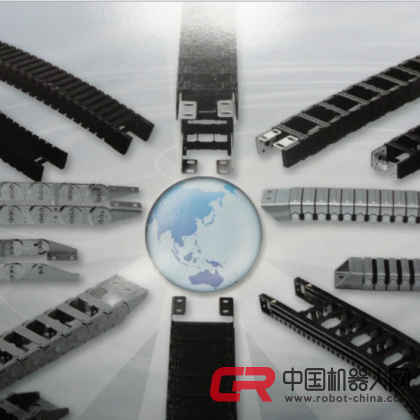

點擊圖片查看原圖

品牌： 椿本TSUBAKI
型號： TKP90
規格： TKP80
單價： 10.00元/件
起訂： 1 件
供貨總量： 90000000 件
發貨期限： 自買家付款之日起 3 天內發貨
所在地： 上海
有效期至： 長期有效
最后更新： 2025-03-04 15:06
瀏覽次數： 1460
詢價

公司基本資料信息

您還沒有登錄，請登錄后查看詳情

詳細說明


電纜拖鏈·支撐軟管及導向裝置--上海臻辛機械設備有限公司

products images



  •
Cableveyor Cleanroom landing page
KabelSchlepp and Tsubakimoto

跟TSUBAKI KabelSchlepp GmbH公司一起，向世界各國的客戶提供鋼制和塑料制電纜施鏈和TRAXLINE® (具有彈性的電纜拖鏈用電纜支撐軟管及導向裝置)。

KabelSchlepp公司合并到TSUBAKI集團,成為電纜施鏈部門的世界供應商。

經過了40多年，兩家公司已經建設了密切關系。作為一家戰略性企業繼續良好的相互配合的關系。

因此，導向槽防護系統、輸送系統及金屬防護罩等包電纜施鏈系統，還有CAPS部門，KabelSchlepp公司的國際競爭力和市場定位均能得到提高。

關于此產品的詳細內容，您可在TSUBAKI KabelSchlepp公司的網站確認。

  • 電纜施鏈
  • TRAXLINE(電纜支撐軟管及導向裝置)
  •

Series

link-bottom="" mt-ul="" style="box-sizing: inherit; height: 598px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
MONO series
BASIC-LINE

MONO series

Cable carriers for standard applications

  • Cost-effective cable carrier
  • Easy and fast installation
  • Many types available immediately ex-stock world wide
Inner height 10 – 15 mm
Inner width 6 – 40 mm
Bending radius 18 – 50 mm
Travel length 1.95 m
to the MONO series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 598px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
QuickTrax® series
BASIC-LINE

QuickTrax® series

Compact and cost-effective cable carriers in two-component technology

  • Extremely fast and easy cable laying thanks to crossbar with film hinge
  • Each chain link consists of two different materials:
        – Hard chain body made of glass-fibre reinforced material
        – Crossbar with flexible film hinge made of elastic special plastic
  • Sturdy cable carrier design
Inner height 20 mm
Inner width 15 – 65 mm
Bending radius 28 – 125 mm
Travel length 2.9 m
to the QuickTrax® series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 598px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
UNIFLEX Advanced series
BASIC-LINE

UNIFLEX Advanced series

Light, quiet all-rounder with a wide range of applications*

  • Extensive unsupported lengths
  • High torsional rigidity
  • Good ratio of inner to outer width
Inner height 20 – 44 mm
Inner width 15 – 250 mm
Bending radius 28 – 300 mm
Travel length 7 m
to the UNIFLEX Advanced series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 567px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
TKP35 series
BASIC-LINE

TKP35 series

Robust all-rounder with variable inner distribution

  • Robust and extremely rigid stroke system
  • Quiet operation due to internal dampening system
  • Weight-optimized cable carrier geometry
Inner height 32 mm
Inner width 16 – 50 mm
Bending radius 48 – 125 mm
Travel length 2.3 m
to the TKP35 series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 567px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
TKK series
BASIC-LINE

TKK series

Dirt-repellent cable carriers made of plastic

  • High torsional rigidity
  • Optimised dividers to protect cables: rounded inner and outer profile
  • Extensive unsupported length
Inner height 39 mm
Inner width 59 – 99 mm
Bending radius 46 – 95 mm
Travel length 4.8 m
to the TKK series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 567px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
PROTUM® series
BASIC-LINE PLUS

PROTUM® series

Small, light cable carriers for unsupported applications

  • Quiet running through short pitch
  • Low-vibration operation
  • Ideal for short travel lengths and high travel speeds
Inner height 10 – 21.5 mm
Inner width 15 – 40 mm
Bending radius 18 – 72 mm
Travel length 1.5 m
to the PROTUM® series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 567px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
EasyTrax® series
BASIC-LINE PLUS

EasyTrax® series

Extremely fast cable laying thanks to easy cable insertion

  • Very fast cable laying by simply pressing in the cables
  • Very high fill level through lateral swivelling of the lamella – lamellae do not swivel into the cable space
  • Each chain link consists of two different materials:
    – Hard chain body made of glass-fibre reinforced material
    – Lamellae with flexible film hinge made of special elastic plastic
Inner height 4.6 – 25 mm
Inner width 7 – 78 mm
Bending radius 10 – 200 mm
Travel length 4.8 m
to the EasyTrax® series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 567px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
K series
VARIO-LINE

K series

Cost-effective, robust cable carrier – suitable for large additional loads

  • Stable sidebands through robust link plate design
  • Encapsulated, dirt-resistant stroke system
  • Long service due to minimized hinge wear owing to the “life extending 2 disc principle“
Inner height 38 – 58 mm
Inner width 68 – 561 mm
Bending radius 75 – 385 mm
Travel length 8.4 m
to the K series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 567px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
MASTER series
VARIO-LINE

MASTER series

Quiet and weight-optimized cable carriers

  • Low intrinsic weight
  • Favorable ratio of inner to outer dimensions
  • Versions with aluminum stays available in 1 mm width sections up to 800 mm inner width
Inner height 33 – 80 mm
Inner width 50 – 800 mm
Bending radius 60 – 500 mm
Travel length 7.9 m
to the MASTER series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 591px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
M series
VARIO-LINE

M series

Variable cable carrier with extensive accessories and stay variants

  • Encapsulated, dirt-resistant stroke system
  • Durable sidebands through robust link plate design
  • Easy assembly of side bands through bars with easy-to-assemble locking bolts
Inner height 19 – 87 mm
Inner width 24 – 800 mm
Bending radius 37 – 500 mm
Travel length 10.8 m
to the M series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 591px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
TKHD series
VARIO-LINE

TKHD series

Heavy duty cable carriers for long travel lengths and high additional loads

  • Massive, enclosed, stain-repellend stop system
  • Massive sidebands through robust double fork-bracket-construction
  • Sidebands easy to assemble
Inner height 87 mm
Inner width 100 – 800 mm
Bending radius 250 – 360 mm
Travel length 13.5 m
to the TKHD series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 591px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
XL series
VARIO-LINE

XL series

Cable carrier with large inside height

  • Sizes/dimensions
  • Low intrinsic weight
  • Optimum force transmission via the large-surface stroke system (2 disc principle)
Inner height 108 mm
Inner width 200 – 1000 mm
Bending radius 250 – 550 mm
Travel length 11.75 m
to the XL series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 591px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
QUANTUM® series
VARIO-LINE

QUANTUM® series

Light, extremely quiet and low-vibration for high speeds and accelerations

  • Cleanroom compatible: no links, no link wear
  • Extremely quiet, 31 db (A)*
  • Extremely light
Inner height 28 – 72 mm
Inner width 28 – 600 mm
Bending radius 60 – 600 mm
Travel length 7.8 m
to the QUANTUM® series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 591px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
TKR series
VARIO-LINE

TKR series

Extremely quiet and low-vibration for highly dynamic applications*

  • Long service life
  • Ideal for highly dynamic applications
  • High side stability
Inner height 22 – 52 mm
Inner width 20 – 200 mm
Bending radius 40 – 200 mm
Travel length 4.9 m
to the TKR series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 591px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
TKA series
TUBES-PLASTIC

TKA series

Chip-tight right to the end

  • Excellent cable protection in the connector area
  • Chip and dirt resistant due to smooth surfaces
  • Extensive unsupported length
Inner height 20.5 – 45 mm
Inner width 15 – 250 mm
Bending radius 55 – 300 mm
Travel length 6.5 m
to the TKA series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 409px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
MT series
TUBES-PLASTIC

MT series

Variable, closed cable carrier with extensive range of accessories

  • Encapsulated, dirt-resistant stroke system
  • Stable side bands through robust link plate design
  • Easy assembly of side bands through bars with easy-to-assemble locking bolts
Inner height 26 – 87 mm
Inner width 24 – 800 mm
Bending radius 75 – 500 mm
Travel length 10.8 m
to the MT series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 409px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
XLT series
TUBES-PLASTIC

XLT series

Tubes with variable cable carrier widths

  • Sizes/dimensions
  • Low intrinsic weight
  • Optimum force transmission via the large-surface stroke system (2 disc principle)
Inner height 105 mm
Inner width 200 – 1000 mm
Bending radius 300 – 550 mm
Travel length 11.75 m
to the XLT series
link-bottom="" mt-ul="" h-100="" style="box-sizing: inherit; height: 409px; padding-bottom: 210px; background-color: rgb(229, 229, 229) !important; position: relative;">
ROBOTRAX® System
3D-LINE

ROBOTRAX® System

Cable carrier for 3D movements

  • Suitable for three-dimensional swivel and rotation movements
  • Ideal for a long service life of the cables:
    – The bending radius does not fall below the minimum
    – The cables can be separated in three chambers
  • Also ideal for turntables
to the ROBOTRAX® System
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 409px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
LS/LSX series
STEEL-LINE

LS/LSX series

Cost-effective steel chains with light design

  • Weight-optimized one-part link plate design
  • Better value than comparable steel cable carriers
  • Significantly higher unsupported lengths compared to plastic cable carriers of a similar size
Inner height 54 – 58 mm
Inner width 54 – 584 mm
Bending radius 105 – 430 mm
Travel length 9.5 m
to the LS/LSX series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 409px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
S/SX series
STEEL-LINE

S/SX series

Extremely robust and sturdy steel cable carriers

  • Extremely robust, sturdy steel cable carriers for heavy mechanical loads and rough environmental conditions
  • Side bands made of galvanized steel (S series) or corrosion-resistant and acid-resistant steel (SX series) in three qualities: ER 1 / ER 1S and ER 2
  • Very sturdy link plates, each consisting of two individual plates
Inner height 26 – 578 mm
Inner width 35 – 1650 mm
Bending radius 75 – 2400 mm
Travel length 24.9 m
to the S/SX series
link-bottom="" mt-ul="" style="box-sizing: inherit; height: 409px; background-color: rgb(229, 229, 229) !important; position: relative; padding-bottom: 210px;">
S/SX Tubes series
TUBES-STEEL

S/SX Tubes series

Extremely robust and sturdy covered steel cable carriers

  • Extremely robust, sturdy steel cable carriers for heavy mechanical loads and rough environmental conditions
  • Side bands made of galvanized steel (S series) or corrosion-resistant and acid-resistant steel (SX series) in three qualities: ER 1 / ER 1S and ER 2
  • Very sturdy link plates, each consisting of two individual plates
Inner height 30 – 104 mm
Inner width 65 – 938 mm
Bending radius 115 – 1300 mm
Travel length 17.8 m
to the S/SX Tubes series
