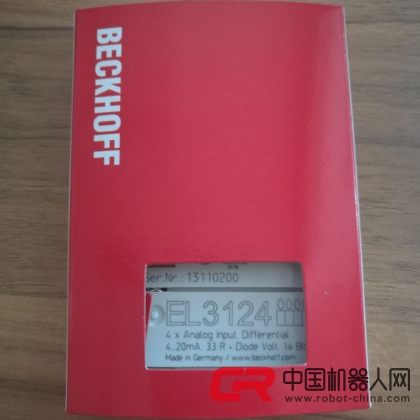

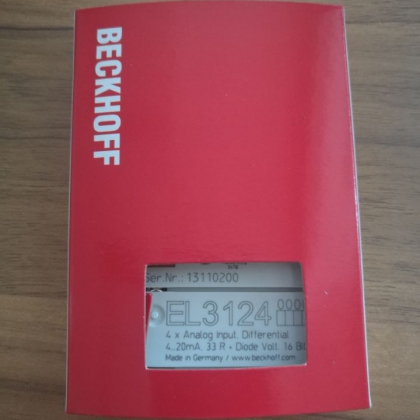

BECKHOFF EL3124模塊
EL3124 | 4-channel analog input terminal 4…20 mA, differential input, 16 bit
The EL3124 analog input terminal handles signals in the range from 4 to 20 mA. The current is digitised to a resolution of 16 bits and is transmitted, in an electrically isolated form, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The EL3124 combines four channels in one housing. An open lead or overload condition are detected and the terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The error LEDs indicate an overload condition and a broken wire.
| Technical data |
EL3124 | ES3124 |
| Number of inputs |
4 (differential) |
| Power supply |
via the E-bus |
| Technology |
differential input |
| Signal current |
4…20 mA |
| Distributed clocks |
yes |
| Internal resistance |
85 Ω typ. + diode voltage |
| Input filter limit frequency |
5 kHz |
| Common-mode voltage UCM |
10 V max. |
| Conversion time |
~ 100 µs |
| Resolution |
16 bit (incl. sign) |
| Measuring error |
< ±0.3 % (relative to full scale value) |
| Surge voltage resistance |
35 V DC |
| Electrical isolation |
500 V (E-bus/signal voltage) |
| Current consumption power contacts |
– |
| Current consumption E-bus |
typ. 130 mA |
| Bit width in the process image |
inputs: 16 byte |
| Configuration |
no address or configuration setting |
| Special features |
standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight |
approx. 60 g |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| Relative humidity |
95 %, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. |
IP 20/variable |
| Pluggable wiring |
for all ESxxxx terminals |
| Approvals |
CE, UL, Ex |
| Related products |
|
| EL3124-0090 |
4-channel analog input 4…20 mA, differential input, 16 bit, TwinSAFE SC |
