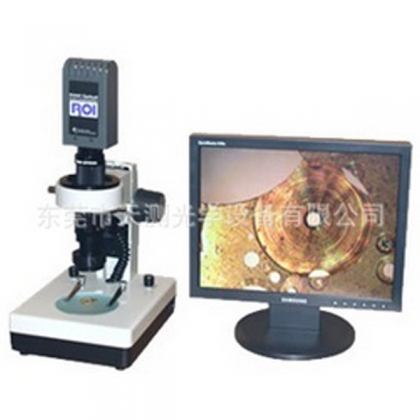

Fatigue-free 3D visual inspection of small parts and assemblies
Squinting into a microscope eyepiece all day long for parts inspection can be very uncomfortable. Thats why we developed the VDM system.
Features:
•Stable metal stand with small footprint
•150W illuminator
•Real-time color imaging on a 15" LCD monitor
The VDM-E/Z™ is available with two interchangeable optics options:
•Patented Extended Depth of Field (EDF) Objective with on-axis lighting
•Zoom Objective with fiber optic ringlight and add-on lenses
The system is complete with fiber optic lighting and is available with a number of options to enhance its versatility. When inspecting small parts from any angle, VDM is the effortless clear choice.
|
Specifications 6 |
|
Camera |
|
|
High Resolution Color CCD with 768X494 pixel array |
|
|
Optional EDF objective |
|
|
Working Distance |
Magnification On 15" Monitor |
|
6" to 3" (150 to 75mm) |
18X |
|
2.0"(50mm) |
26x |
|
1.0"(25mm) |
55x |
|
0.5"(12mm) |
111X |
|
0.25"(6mm) |
210X |
|
Optional Zoom objective |
|
|
Working Distance |
Magnification On 15" Monitor |
|
3.3"(85mm) |
30X-170X |
|
|
|
|
|
|
|
|
