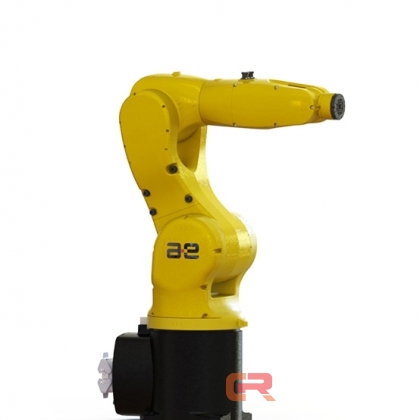

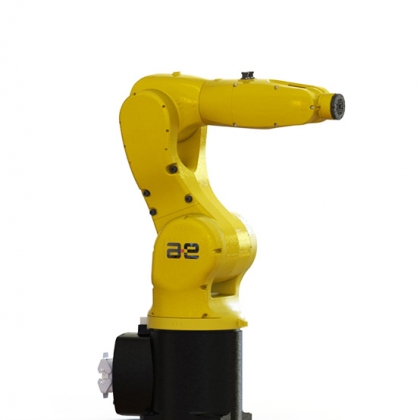

| 機器人參數(shù)表 | AIR6P | |
| 最大負載 / Max. load | 6kg | |
| 機器人本體Manipulator | 重量 / Weight | 48kg |
| 最大運動范圍 / Reach of 5th axis | 710mm | |
| 定位精度Positioning accuracy | 位置重復(fù)定位精度 / Positioning repeatability | ±0.02mm |
| 路徑重復(fù)定位精度 / Path repeatability | 0.1mm | |
| 運動范圍 Work area |
軸1 / Axis 1 rotation | -180~180° |
| 軸2 / Axis 2 arm | -100~135° | |
| 軸3 / Axis 3 arm | -120~155° | |
| 軸4 / Axis 4 wrist | -200~200° | |
| 軸5 / Axis 5 Bend | -135~135° | |
| 軸6 / Axis 6 Turn | -360~360° | |
| 運動速度 Rotation rate |
軸1 / Axis 1 rotation | 360°/s |
| 軸2 / Axis 2 arm | 360°/s | |
| 軸3 / Axis 3 arm | 480°/s | |
| 軸4 / Axis 4 wrist | 500°/s | |
| 軸5 / Axis 5 Bend | 550°/s | |
| 軸6 / Axis 6 Turn | 800°/s | |
|
|
|
|
|
|
|
|
