采用全球頂級臺灣雷凌公司的 RT3070芯片150M無線
USB網卡兼容IEE 802.11B/G/N標準,無線傳輸速度高達
150Mbps,支持64/128位WEP數據加密,同時支持WPA/WPA-PSK.WPA2/WPA2-PSK安全機制
此款WIFI模塊適用于：臺式電腦、上網本、MID（平板電腦）、機頂盒、監控攝像頭、網絡收音機、數碼相框、健身器材、醫療器械、燈光控制、門鎖控制、物流網監控設備，等等需要采用無線傳送數據的各種運用。臺式電腦、上網本、MID（平板電腦）、機頂盒、監控攝像頭、網絡收音機、數碼相框、健身器材、醫療器械、燈光控制、門鎖控制、物流網監控設備
兼容802.11 b / g / n
USB2.0 /1.1 ,2.4GHz ，ISM頻段
峰值速率：150Mbps

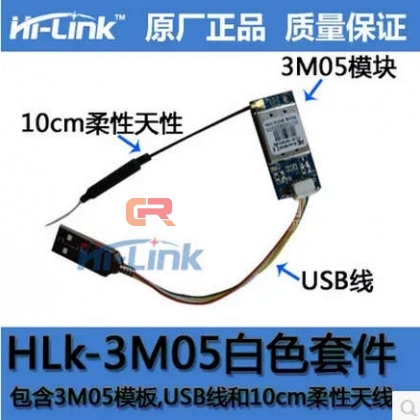

IPEX座，外接天線
安全機制：WHQL；Cisco CCX,
操作系統：Linux 2.6 X; Mac OSX,Windows CE, Windows 2000 / XP / Vista/ 7
工作電壓：5VDC
USB接口：6-針，2.0mm間距插針
40.0 x 18.0x 8.8（針高）mm
|
Hardware
|
|
Chipset
|
Ralink RT3070
|
|
Host interface
|
USB2.0/1.1, type A
|
|
LEDS
|
Link/ Activity
|
|
RF
|
|
Antenna
|
Built-in PCB antenna
|
|
Frequency
|
2412~2483.5MHz, ISM band.
|
|
Transmit Power
|
802.11b:17+/-1.5dBm; 802.11g:14+/-1.5dBm
|
|
Receive Sensitivity
|
802.11b:-84+/-1.5dBm@11Mbps; 802.11g:-69+/-1.5dBm@54Mbps
|
|
Software
|
|
Operation System
|
Windows CE/2000/XP/Vista; Linux 2.6.X;Mac OS X
|
|
Security
|
WEP 64/128bit,WPA,WPA2,802.1X ,Cisco CCS V1.0,2.0 and V3.0 Compliant.
|
|
Operation Conditions
|
|
Voltage Range*
|
DC 5.0V±5%
|
|
Operating Temperature
|
0℃-50℃
|
|
Storage Temperature
|
-20℃-70℃
|
|
Operating Humidity
|
RH 95%(Non-Condensing)
|
|
Storage Humidity
|
RH 95%(Non-Condensing)
|
|
Chipset: Ralink RT3070
|
|
Standard: 802.11N compliance, Peak rate: 150Mbps
|
|
Frequency: 2.4GHz, ISM band
|
|
External antenna via IPEX receptacle
|
|
Host interface: USB 2.0/1.1,
|
|
USB Connection:6-pin. 2.0mm pitch male jumper
|
|
Operation System: Windows CE/2000/XP/Vista
|
|
Security:WHQL;Cisco CCX Linux2.6X;Mac OSX
|
|
Operating Voltage:5.0 VDC +/- 5%
|
|
Size: 40x18x8.7( PIN height)mm
|
