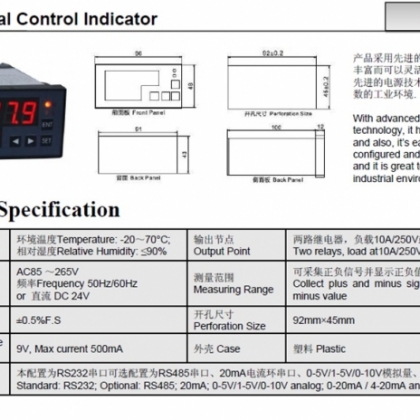

使用條件
Working Environment
環境溫度Temperature: -20～70?C;
相對濕度Relative Humidity: ≤90%
輸出節點
Output Point
兩路繼電器，負載10A/250V或10A/30V
Two relays, load at10A/250V or 10A/30V
電源電壓
Power Supply
AC85 ～265V
頻率Frequency 50Hz/60Hz
 or 直流 DC 24V
測量范圍
Measuring Range
可采集正負信號并顯示正負值
Collect plus and minus signal, and display plus or
minus value
測量誤差
Measurement Error ±0.5%F.S 開孔尺寸
Perforation Size 92mm×45mm
橋路供電電壓Bridge
Circuit Power supply 9V, Max current 500mA 外殼 Case 塑料 Plastic
輸出接口
Output Port
本配置為RS232串口可選配置為RS485串口、20mA電流環串口、0-5V/1-5V/0-10V模擬量、0-20mA/4-20mA模擬量
Standard: RS232; Optional: RS485; 20mA; 0-5V/1-5V/0-10V analog; 0-20mA / 4-20mA analog
