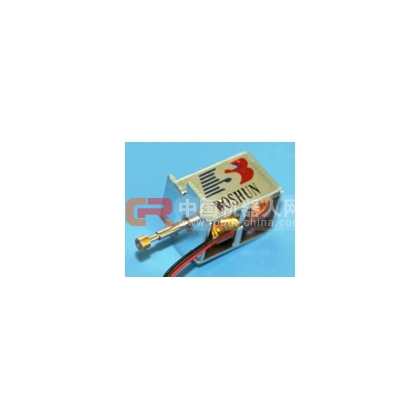

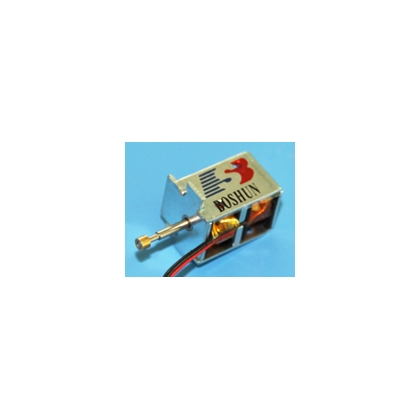

| 1.名稱型號(P/N): BS-1240-04 |
|
| 2.標準測試條件(TEST)： |
|
| 2.1 環(huán)境溫度(temperature range): -5℃-45℃ |
|
| 2.2 相對濕度(relative humidity): 20%-85% |
|
| 2.3 額定電壓(rated voltage): DC12V |
|
| 2.4 適用情況(sphere of application): Intermittence |
|
| 3.電氣特性(ELECTRICAL) |
|
| 3.1 使用電壓(working voltage): DC12V±10% |
|
| 3.2 電流(current): 3.5A (ref) |
|
| 3.3 電阻(resistance ): at20℃ 3.4Ω±10% |
|
| 3.4 力量(potence): Power on DC12V, Stroke 6mm,force 1200g Min |
| 3.5 絕緣電阻(insulation resistance): 500MΩ MIN,@500V DC. |
|
| 3.6 耐電壓(high voltage ): 1sec @DC700V. |
|
| 3.7 絕緣等級(insulaiton level): CLASS B(130°) |
|
| 3.8 壽命(biometry ): 500,000 Times Min |
|
