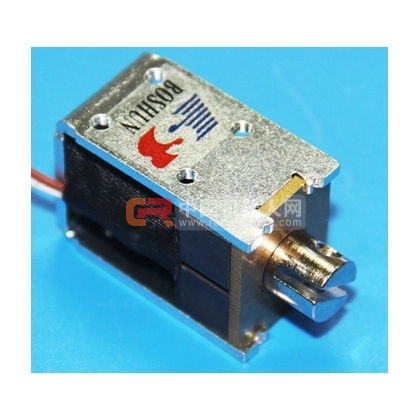

| 1.名稱型號(P/N): BS-1039-12 |
|
| 2.標準測試條件(TEST)： |
|
| 2.1 環境溫度(temperature range): -5℃-45℃ |
|
| 2.2 相對濕度(relative humidity): 20%-85% |
|
| 2.3 額定電壓(rated voltage): DC24V |
|
| 2.4 適用情況(sphere of application): 間歇型 |
|
| 3.外觀(FACIES) |
|
| 3.1 外觀(FACIES): 沒有損傷、破裂、生銹 、表面污點 |
| 3.2 外型尺寸(n. surface size) 見附圖 |
|
| 4.電氣特性(ELECTRICAL) |
|
| 4.1 使用電壓(working voltage): DC24V±10% |
|
| 4.2 電流(current): 1A (ref) |
|
| 4.3 電阻(resistance ): at20℃ 24Ω±10% |
|
| 4.4 力量(potence): 輸入DC24V,行程8mm時,推力在550g以上 |
| 4.5 絕緣電阻(insulation resistance): 100MΩ MIN,@500V DC. |
|
| 4.6 耐電壓(high voltage ): 1sec @DC700V. |
|
| 4.7 絕緣等級(insulaiton level): CLASS B(130°) |
|
| 4.8 壽命(biometry ): 500,000 Times Min |
|
