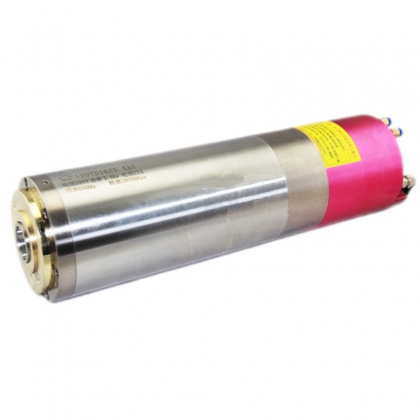

型號Spindle type: A80TD24/30Z2.2T

1.轉速Rev(rpm):24000/30000

 2.功率Power(kw):2.2

 3.電壓Voltage(V):220

 4.電流Current(A):6.4

 5.頻率Frequency(HZ):400/500

 6.水冷Cooled by water

 7.軸承型號Bearing type:2×7006C P4

                                   2×7004C P4

 8.油脂潤滑Lubricate：grease

 9.夾帽Collet(mm):ISO20

10.保修Repair time:bearing(half year),spindle(one year)

11.外徑Diameter(mm):80

12.長度Length(mm):367

13.重量weight（kg）:9KG

14.品牌Brand:韓國AY
