COMMON FEATURES ¬ 共同特性
Body material: brass (CW617N EN 12165) ¬ 閥體材質: 黃銅 (CW617N EN 12165)
Orifice material: stainless steel (1.4305 EN 10088/AISI 303) ¬ 端口材質: 不銹鋼 (1.4305 EN 10088/AISI 303)
Operator material: stainless steel ¬ 操作器材質: 不銹鋼
Protection class: IP 65 (with connector and gasket) ¬ 保護等級: IP65 (包括連接器和墊片)
OPTIONS ¬ 選項
Available with body thread connection 1/8" (e.g. code D262DVH), performance ratings remain the same as D263DVH.
¬ 可提供 1/8" 螺紋的閥體 (如型號 D262DVH), 性能與 D263DVH 相同
Manual override (e.g. code D262DVCM) ¬ 手控裝置 (如型號 D262DVCM)

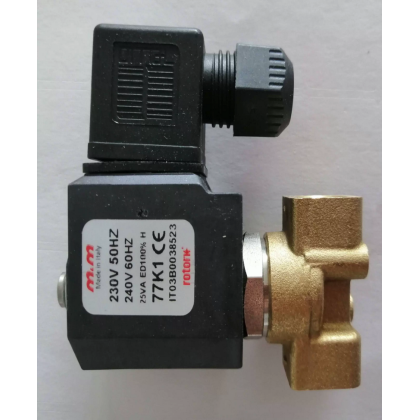

D262/263
- FKM seal, NC ? FKM 密封, NCMedia:
water, oil, air ? 流體: 水，油，空氣
Media temperature: -10°C ÷ +130°C ? 流體溫度: -10°C ÷ +130°C
Ambient temperature: -10°C ÷ +50°C ? 環(huán)境溫度: -10°C ÷ +50°C
Seal material: foodgrade FKM ? 密封材質: 食用 FKM
Coil power: AC 18va (holding ? 持續(xù))
? 線圈功率: AC 36va (inrush ? 起動)
