技術參數 |
|
|
安裝方式 |
齊平 |
|
檢測距離 |
1mm |
|
LED顯示 |
有 |
|
工作電壓 |
10-30VDC |
|
允許脈動電壓 |
<10% |
|
無負載電流 |
<10mA |
|
負載電流 |
200mA |
|
漏電流 |
<0.01mA |
|
電壓降 |
<1.5v |
|
開關頻率 |
2KHZ |
|
響應時間 |
0.1ms |
|
開關磁滯 |
<15%(Sr) |
|
重復精度 |
<1.0%(Sr) |
|
防護等級 |
IP67 |
|
工作溫度 |
-25℃至+70℃ |
|
溫度漂移 |
<10%(Sr) |
|
過載電流保護 |
220mA |
|
感應面材質 |
PBT |
|
連接方式 |
2米防油PVC電纜 |

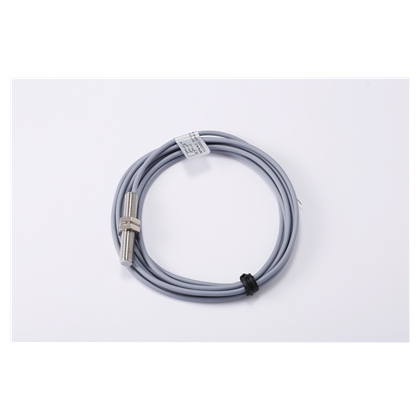

M8電感式近接傳感器，檢測距離1mm/2mm/3mm/4mm，齊平，標準型體長45mm，短型體長30mm，超短型體長18mm，出線式：
I1SF-M801N-O3U2,I1SF-M801N-C3U2,I1SF-M801P-O3U2,
I1SF-M801P-C3U2,I1SF-M802N-O3U2,I1SF-M802N-C3U2,
I1SF-M802P-O3U2,I1SF-M802P-C3U2,I1SF-M803N-O3U2,
I1SF-M803N-C3U2,I1SF-M803P-O3U2,I1SF-M803P-C3U2,
I1CF-M804N-O3U2,I1CF-M804N-C3U2,I1CF-M804P-O3U2,
I1CF-M804P-C3U2,I1SF-M801N-O3S2,I1SF-M801N-C3S2,
I1SF-M801P-O3S2,I1SF-M801P-C3S2,I1SF-M802N-O3S2,
I1SF-M802N-C3S2,I1SF-M802P-O3S2,I1SF-M802P-C3S2,
I1SF-M803N-O3S2,I1SF-M803N-C3S2,I1SF-M803P-O3S2,
I1SF-M803P-C3S2,I1CF-M804N-O3S2,I1CF-M804N-C3S2,
I1CF-M804P-O3S2,I1CF-M804P-C3S2,I1SF-M801N-O3R2,
I1SF-M801N-C3R2,I1SF-M801P-O3R2,I1SF-M801P-C3R2,
I1SF-M802N-O3R2,I1SF-M802N-C3R2,I1SF-M802P-O3R2,
I1SF-M802P-C3R2,I1SF-M803N-O3R2,I1SF-M803N-C3R2,
I1SF-M803P-O3R2,I1SF-M803P-C3R2,I1CF-M804N-O3R2,
I1CF-M804N-C3R2,I1CF-M804P-O3R2,I1CF-M804P-C3R2,
I4CF-M802C-O2U2，I4CF-M802C-C2U2,I4CF-M803C-O2U2，I4CF-M83C-C2U2
|
|
|
|
|
|
|
|
