英國斯派莎克FIG33過濾器用來確保所有裝置免受因管道內雜質、鐵銹及焊渣等造成的堵塞和損壞。從而降低了維修費用和生產損失。

過濾器可安裝在蒸汽管路、油管、水管及壓縮空氣系統管路中，保護各種計量儀器、泵機、減壓閥、溫控閥、蒸汽疏水閥及其它設備。

斯派莎克過濾器

英國斯派莎克FIG33過濾器種類齊全，備有從鑄鐵，球墨鑄鐵、鑄鋼、不銹鋼等多種材質的過濾器，口徑從15mm至250mm，多種連接規格，可滿足各種不同工業應用。

    Fig12/13/14/16Y型過濾器，螺紋連接，材質分別為球墨鑄鐵、鑄鐵、鑄鋼和不銹鋼、可用于蒸汽、水及其它流體系統中。

Fig33/34/36/37Y型過濾器，法蘭連接，材質分別為鑄鐵、鑄鋼、不銹鋼和球墨鑄鋼。

    Fig7籃式過濾器，法蘭連接，碳鋼材質。本體上可鉆孔以安裝壓力表和排污閥。

過濾網

的濾網規格齊全，孔徑1/64"至3/16''r或40目至200目，同時，根據不同的材料，濾網材質分別有黃銅、不銹鋼、蒙乃爾高強度耐蝕鎳銅合金等。注意:不要安裝比需要更細的濾網;建議200目的濾網只用于煤氣或空氣管路中。

安裝

    為防止過濾器中積聚凝結水，成為水錘來源并限制過濾區域，在蒸汽主管內口徑大于1"(DN25)的過濾器應水平安裝。

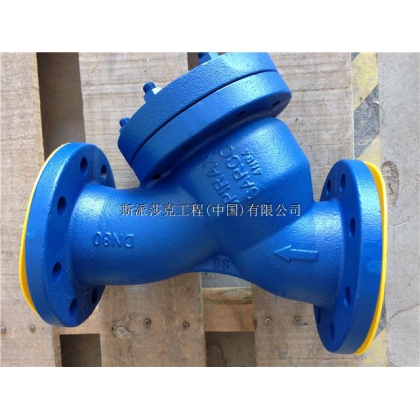

FIG13 Y -strainer , cast iron, flange connection. Standard stainless steel filter , DN15 to DN80 is 0.8mm aperture , DN100 to DN200 is 1.6mm aperture . Another pore size and number and other alloys filters to choose from. According to the needs of the filter can be drilled threaded bonnet or sewage discharge valve.

Spirax Sarco filter

    Spirax Sarco filter is used to ensure that all devices from clogging and damage to the pipeline due to impurities such as rust and welding slag caused . Thereby reducing maintenance costs and production losses.

Filters can be installed in the steam piping, tubing, pipes and compressed air system piping and protect a variety of measuring instruments, pumps , valves, valve, steam traps and other devices.

Filter

Spirax Sarco filter range, available from cast iron, ductile iron, steel, stainless steel and other materials filter diameter from 15mm to 250mm, multiple connectivity specifications to meet a variety of industrial applications.

    Fig12/13/14/16Y type filter , threaded connections , materials are ductile iron , cast iron , cast steel and stainless steel , can be used for steam , water and other fluid systems.

Fig33/34/36/37Y type filter , flange connection , materials are cast iron, cast steel , stainless steel and ductile cast .

    Fig7 basket filter , flange , carbon steel . Can be drilled to install a pressure gauge and drain valve on the body .

Filter

Spirax full screen size of the filter pore size of 1/ 64 " to 3/16'' r or 40 mesh to 200 mesh , and , depending on the material , the filter material are of brass, stainless steel, Monel high strength corrosion resistant nickel-copper alloy , etc. Note : It is best not to install a finer mesh than needed ; recommend 200 mesh screen is used only for gas or air line .

Installation

    In order to prevent the accumulation of condensation water filter has become the source of water hammer and limit filtration area in the steam main diameter greater than 1 "(DN25) filter should be installed horizontally .
