德國VEGA

加工定制

否

測量范圍

見詳情

分辨率

0.1

測量精度

高

數量

20

可售賣地

全國

類型

智能雷達物位計

型號

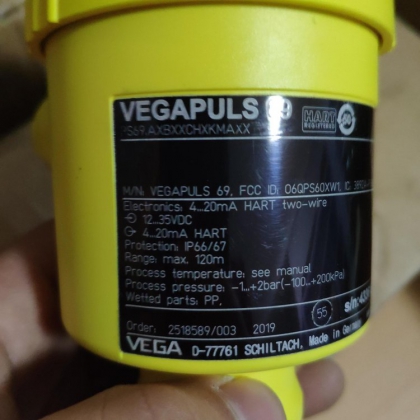

VEGAPULS69

雷達傳感器用于粒料的持續性物位測量

應用范圍

Bulk solids in small up to large vessel heights



The VEGAPULS 69 is a sensor for continuous measurement of bulk solids under different process conditions. It is ideal for level measurement in very high silos, large bunkers and segmented vessels. Thanks to the very good signal focussing a simple setup and reliable measurement is ensured. The VEGAPULS 69 can be equipped with an encapsulated plastic antenna or a lens antenna integrated in the metal flange. This enables the optimum adaption to different application areas.



您的獲益

設備可用性高，無損耗免維護



免維護無接觸測量



測量精確度高，不受蒸汽，灰塵或噪聲影響



技術參數

量程 - 距離



120 m



過程溫度



-40 200 °C



過程壓力



-1 20 bar



測量精度



± 5 mm



型式



with plastic horn antenna ? 80 mm



metal jacketed lens antenna



接液材質



316L



PEEK



螺紋連接



G1?, 1? NPT



法蘭連接



≥ DN80, ≥ 3"



密封材料



EPDM



FKM



外殼材料



塑料



鋁Aluminium



不銹鋼，精密鑄件



不銹鋼，經電解拋光



保護方式



IP 66/IP 68 (0.2 bar)



IP 66/IP 67



IP 66/IP 68 (1 bar)



輸出



Profibus PA



Foundation Fieldbus



4 … 20 mA/HART - two-wire



Modbus



4 … 20 mA/HART - four-wire
