AGXV TM
Automatic
Maximum Performer
HVLP Spray Gun
AGXV Automatic Maximum Performer HVLP Spray Gun
AGX Automatic Conventional Spray Gun
Designed for use with robots, automatic
machines and stationary mounting, the AGXV
Automatic Maximum Performer spray gun is
built to withstand the harsh conditions common
to automatic spray finishing applications.
s Abrasive fluid packing available as an option
for more abrasive coatings.
s Detachable spray head for fast needle packing
replacement.
s Circulating capability standard.
s Optional remote fan control.

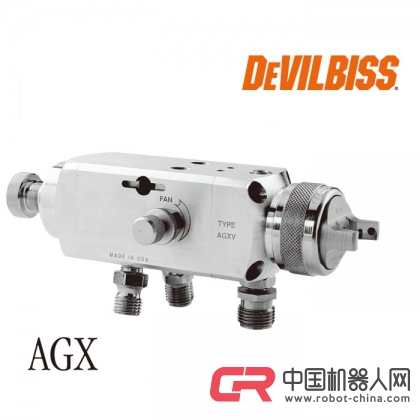

Built to withstand the rigors of high-speed
production lines and harsh finishing conditions,
the AGX automatic air spray gun is engineered
for rugged reliability. Designed for use with
industrial robots, reciprocators and stationary
mounting, the AGX spray gun’s compact size
allows mounting in tight areas.
s Simplified gun design for greater reliability
and ease of maintenance.
s AGX-550 spray gun comes with a stainless
steel tip for use with many waterborne
materials and chlorinated solvents. AGX-552
guns are specially equipped with carbolloy
fluid tip and needle for use with water-mix
materials and abrasives. AGX-553 guns
include “premium” 300-grade stainless steel
fluid tip with U.H.M.W. polyethylene insert
(needle seat) and 300-grade stainless steel
needle for use with mildly abrasive or
corrosive materials. All AGX models include
300-grade stainless steel fluid passages.
AGX
Automatic Conventional Spray Gun
Ordering Information
The AGXV Automatic Maximum Performer
spray gun is available with the following air cap
and fluid tip set-ups, factory assembled for
immediate delivery.
Part No.
AGXV-540-33AFF* AGXV-541-46FX*
AGXV-540-33AFX* AGXV-541-83E*
AGXV-541-46FF* AGXV-543-46FX*
These guns with fluid tip and needle can be
ordered separately without air cap and
retaining ring.
Part No.
AGXV-540-FF* AGXV-541-E*
AGXV-540-FX* AGXV-541-FF*
AGXV-540-G* AGXV-541-FX**
AGXV-543-FX
* Standard tips and needles are stainless steel.
** Includes 300-grade stainless steel with U.H.M.W.
polyethylene seat in fluid tip.
Ordering Information
AGX spray guns are available with the following
air cap and fluid tip set-ups, factory-assembled
for immediate delivery.
Part No.
AGX-550-704E AGX-550-704FX
AGX-550-704FF
These guns with fluid tip and needle can be
ordered separately without air cap and
retaining ring.
Part No.
AGX-550-E AGX-552-Ds
AGX-550-FF AGX-552-EEs
AGX-550-FX AGX-552-FFs
AGX-550-G AGX-553-FF**
AGX-553-FX**
s AGX-552 guns are specially equipped with
carbolloy fluid tip and needle.
** Includes 300-grade stainless steel with U.H.M.W.
polyethylene seat in fluid tip.
AGXV-542-FX**
