產品簡介：

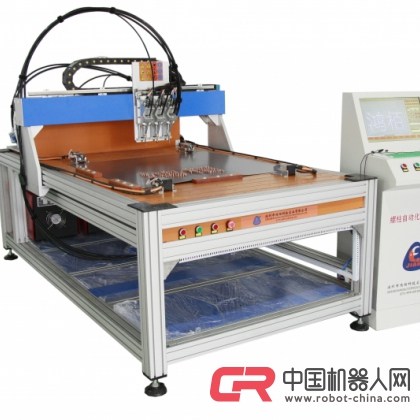

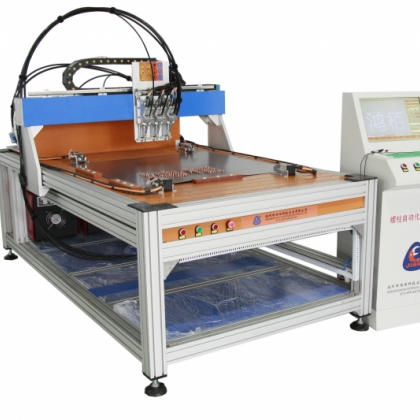

　　SAW-Z系列螺柱焊接自動化平臺是一種高精度、高效率全自動數控螺柱焊接系統。3軸傳動均采用高精度滾珠絲桿線性模組，運行穩定，定位精度高，使用壽命長；控制系統采用工業級工控電腦主板及運動控制卡，交流伺服驅動；焊機選用SAW-D型儲能焊接機（也可配SAW-3600A型DSP高頻逆變螺柱焊機）。Z軸由電機驅動，可配一把焊槍或多把焊槍。

SAW-Z series of stud welding automation platform is an automatic CNC Stud Welding System with high precision and high efficiency. 3-axis is driven through linear guidance with ball bearing, which ensures stable operation, high positioning accuracy ang long life of the system. the control system uses the industry-level industrial computer mainboard, motion control card and AC servo drive, while the welding machines use SAW-D capacitor discharge welding machine (also with SAW-3600A DSP-based high-frequency inverter stud welder).Z-axis which is a motor-driven, can be equipped with one or more guns.

性能特點

人機界面友好；

能將DXF文件轉換成程序文件；

可根據圖紙進行實時仿真模擬；

可對運行速度及時間進行監測控制；

可對運行速度和循環時間進行調節；

可自動檢測焊釘是否輸送到位；

平臺大小可根據客戶需求定制；

可為客戶定做各類工裝夾具。

性能特點 Features

A. User-friendly interface

B. DXF files converter to programming files

C. Real-time simulation according to the drawings

D. Monitoring and display of the motion speed and time-span

E. Regulation of the motion speed and cycle time according to the process

F. Monitoring of stud transport(aut. program stop, if stud is not fed; aut.reloading, if stud is missing)

G. The size can be customized

H. Can order various fixtures

性能指標

案例展示

圓管內焊接螺柱

衛浴花灑

小家電

金融設備
