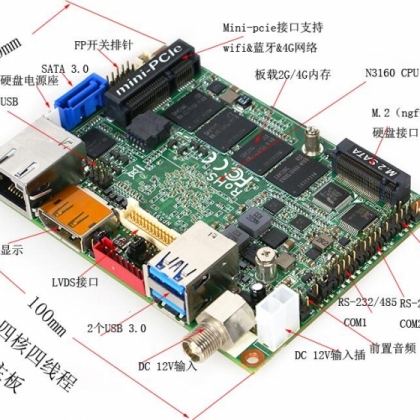

Processor System: CPU Intel® Brodwell Celeron N3160 CPU (quad-core four threads)
CPU package : onboard, fanless design
Chipset : Intel SOC
BIOS system BIOS : AMI BIOS, CMOS battery
Memory
technology architecture : onboard 2G / 4G memory
Maximum capacity :8GB (optional)
Video
Graphics Controller : Intel® HD4000 Series Graphics Media Accelerator
DP: maximum resolution 4K
LVDS : dual channel LVDS
Two support LVDS + DP synchronous or asynchronous display
Network
Controller Network 1: Intel ® I1111 Gigabit Ethernet
Audio
Controller : Realtek HD ALC662 Audio Decode (left and right channel + microphone)
Super I / O
Controller : ITE, support 2COM
Hardware monitoring
Watchdog :0-255 seconds, providing watchdog routines
Temperature detection : support CPU / motherboard / HDD temperature detection
Input / Output Interface
USB 3.0 : 2x USB 3.0 PORT
USB 2.0 : 2, compatible with USB2.0 / 1.1, maximum support + 5V @ 1A.
Serial : Com1-COM2 9-wire RS232 / 485 optional
GPIO : 8-bit, provides routines, freely defined input / output, 3.3V @ 24mA level
Mini-PCIe : 1 full-length Mini-PCIe 1x slot for PCIe and USB devices (optional)
Storage
SATA : standard 1xSATA interface, plus SATA HDD power socket
M.2 : NFGG hard drive motherboard
System
WINDOWS: WIN7 / WIN8 / WIN10
Other :Unix / Linux / Android 4.4.2
Power
Supply type : DC12V input, 5.5 * 2.5DC connector
Power consumption :Typical power consumption: 6W
Working environment
Operating temperature : -20 ° C ~ 60 ° C
Storage temperature : -40 ° C to 80 ° C
Operating humidity : 0% to 90% relative humidity, no condensation
Storage humidity : 0% to 90% relative humidity, no condensation
Size : 100x 70mm
