The range of application:

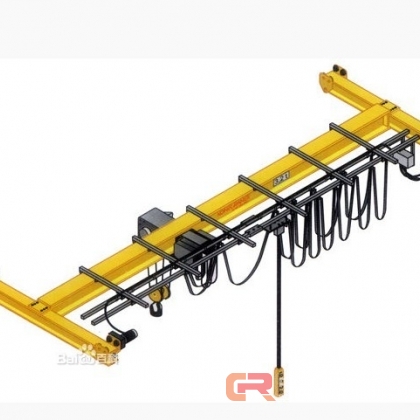

作為行車電動葫蘆連接和控制電纜，適用于干燥或潮濕的室內的各種電氣安裝。鑒于其特殊的柔性設計，它還適用于無應力緩釋可強制引導的左右非連續性運動下的安裝或固定敷設。（不作為電梯電纜來回升降使用）。It is the control cable being used for cranes and other appliances in dry or wet environment(indoor). For its special flexibility, it also can be used for  non-continuous installation or fixation, but cannot work as elevator cables.

電纜特性

纜芯之間加有黃麻繩抗拉承載Juted insulated cable rope among cores functions as tensile resistance，芯線與護套間還包有一層無方布緩沖，There is non-woven fabric to release impact between cores and sheath.

在超高長度情況下還有兩根承載鋼絲繩可供選擇（破斷拉力可達10.4KN，高度可達150米）In the condition of ultra-height, We recommend to use cable with 2 steels whose broken pulling force reaches 10.4KN and the height 150m .。由于采用了改性的PVC護套比一般橡膠材質更具有抗拉性和抗撕裂強度，又保持柔軟性。

產品性能更佳，使用更安全。For the adoption of modified PVC sheath, the product has an excellent properties and safety service.

電纜結構

導  體：多股精絞無氧銅絲，符合VDE0295 CLASS 5標準

Conductor:  copper acc. To VDE0295, class 5

絕  緣：特殊混合PVC絕緣 Insulation: Special PVC

顏  色：Colour:

多彩顏色數字表示, 參照JISC3306標準。

various colour cores with number acc.to JISC3306

黑色數字白色號碼編號,符合IEC227標準。

 black with white number and green/yellow acc.to IEC227

（如需帶有黃綠接地線請說明）

內襯層：

inner liner

特殊無方布包裹緩沖. non-woven fabric wrapping to release impact

鋼  絲：Steel rope

一根或兩根無扭力自承鋼絲，承載運行中產生的張力 One or two self-supporting steel rope is used to carry tensile force in working.

護  套：混合70度PVC護套,黑色(RAL9005)。Outer sheath：70℃PVC, black (RAL9005))
