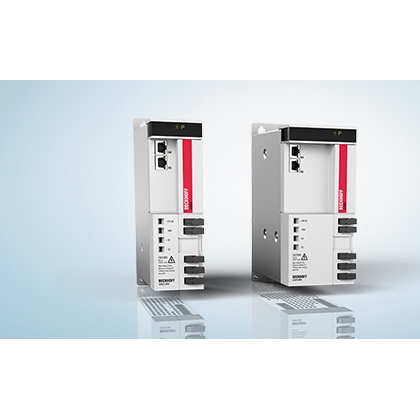

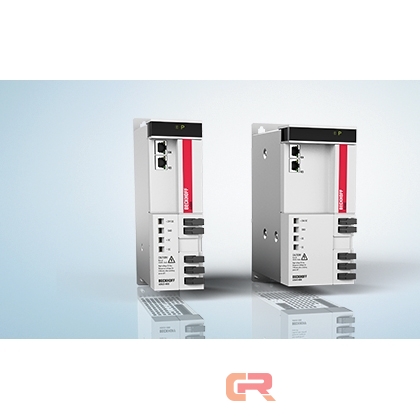

A power supply module generates the DC-
Any regenerative energy produced, e.g. through strong braking of the motors, can be converted into heat either via the internal brake resistor or via the combination of built-in brake chopper and external brake resistor. Alternatively, the energy can be buffered in the AX8810 capacitor module.
AX8000 supply modules can be used on 1- and 3-phase low-voltage mains supplies.
A separate 24 V DC power supply is required in each case.
| Technical data | AX8620-0000 | AX8620-1000 |
|---|---|---|
| Function | power supply module | |
| Rated supply voltage | 3 x 400…480 V AC | 3 x 200…240 V AC 1 x 100…240 V AC |
| Rated input current at 40 °C | 3~: 17.5 A AC | 1~: 10.0 A AC 3~: 17.5 A AC |
| Rated output current | 3~: 20 A DC | 1~: 7 A DC 3~: 20 A DC |
| Rated output | 3~: 10.7 kW | 1~: 2.0 kW 3~: 6.4 kW |
| DC- |
max. 875 V DC | max. 425 V DC |
| DC- |
405 µF | 1020 µF |
| Max. braking power (internal/external) | 21.8 kW/21.8 kW | 5.4 kW/9.8 kW |
| Dimensions (W x H x D) | 60 mm x 230 mm x 192 mm | |
|
|
|
|
|
|
|
|
